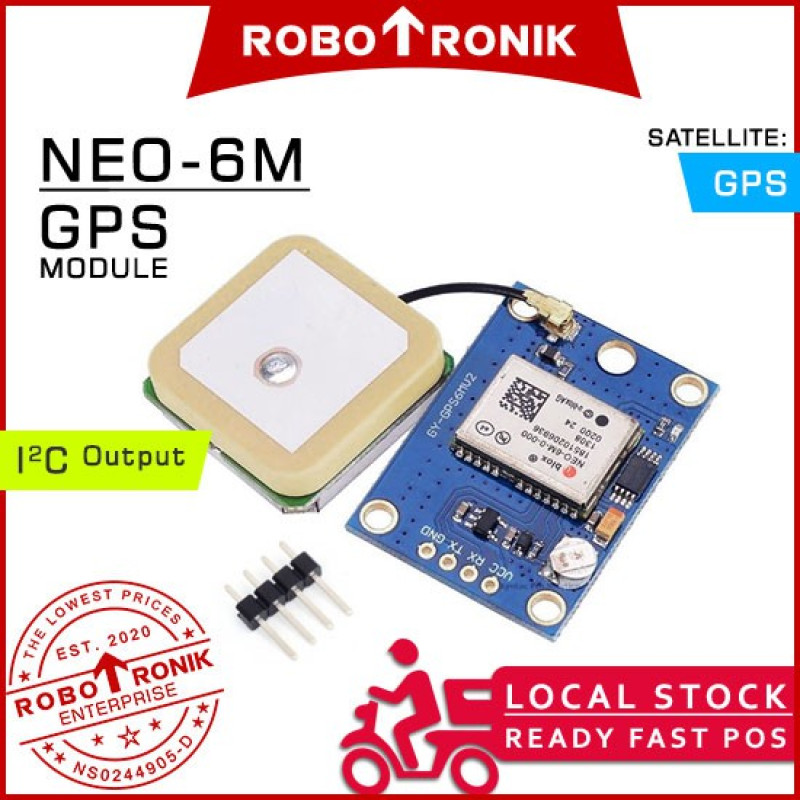

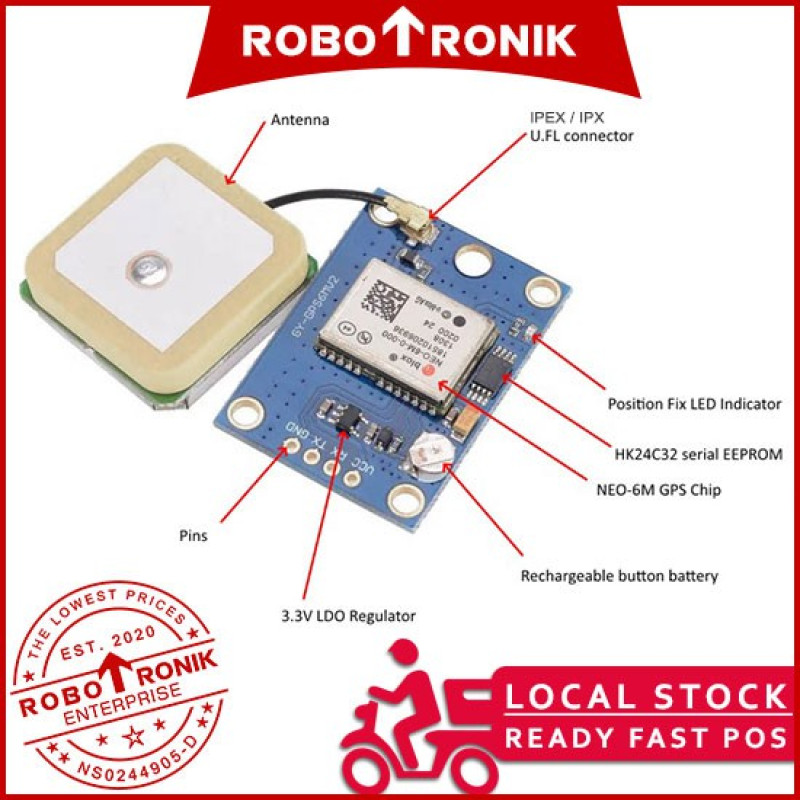

✍ The Ubox NEO-6M gps engine on this board is a quite good one, with high precision binary output. It has also high sensitivity for indoor applications. The gps module have a battery for power backup and EEprom for storing configuration settings.

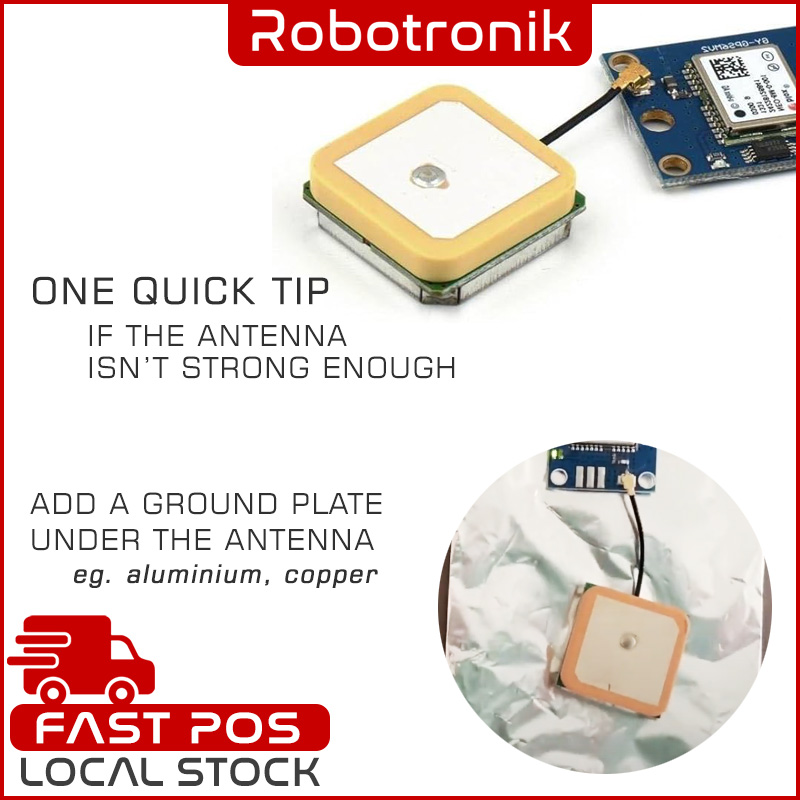

✍ The antenna is connected to module through ufl cable which allow for flexibility in mounting the gps such that the antenna will always see the sky for best performance. This make it powerful to use with cars and other mobile applications.

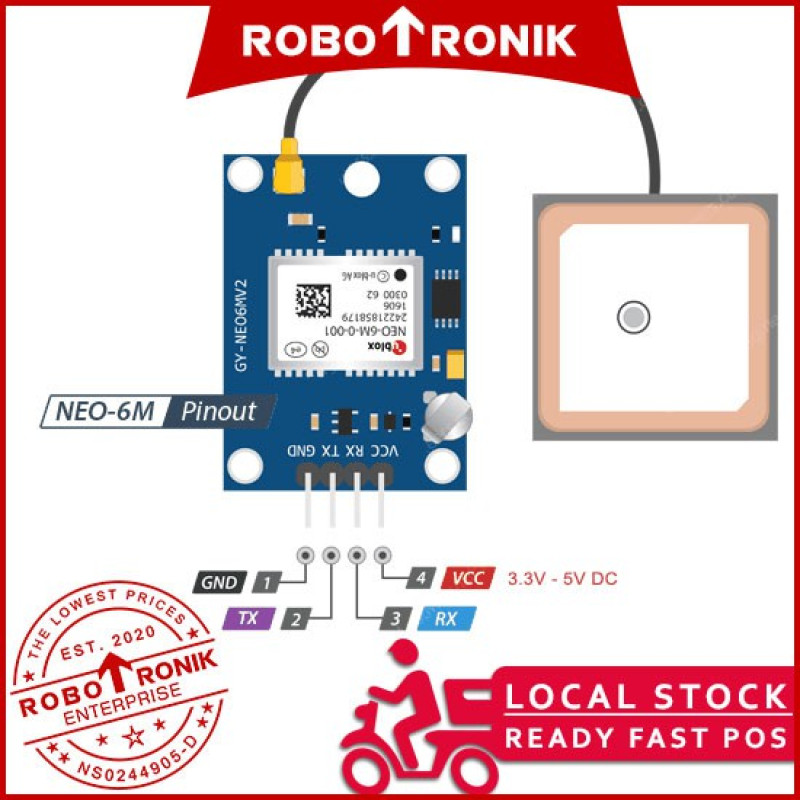

✍ The gps module has serial TTL output, it has four pins:TX, RX, VCC and GND.


▼ Features
Cold start time of 38s; Hot start time of 1s.
Rechargeable battery for Backup SuperSense ® Indoor GPS: -162 dBm tracking sensitivity.
Long service life due to the reliable quality.
High accuracy to respond to your demands Clear marks for easy recognize and applying.
Compact size for easy installation.
Lightweight to avoid adding extra burden to your device.
UART protocol communication


▼Specifications
Supply voltage: 3.3V - 5V DC
Configurable from 4800 Baud to 115200 Baud rates. (default 9600)
5Hz position update rate
UART TTL socket
EEprom to save configuration settings
Operating temperature range: -40 to +85°C
Separated 18 X 18mm GPS antenna
Dimension: 22 X 30 X 13mm
Weight: 19g

▼ Package Content
1 x NEO-6M Module
1 x 4-pin Pin Header
